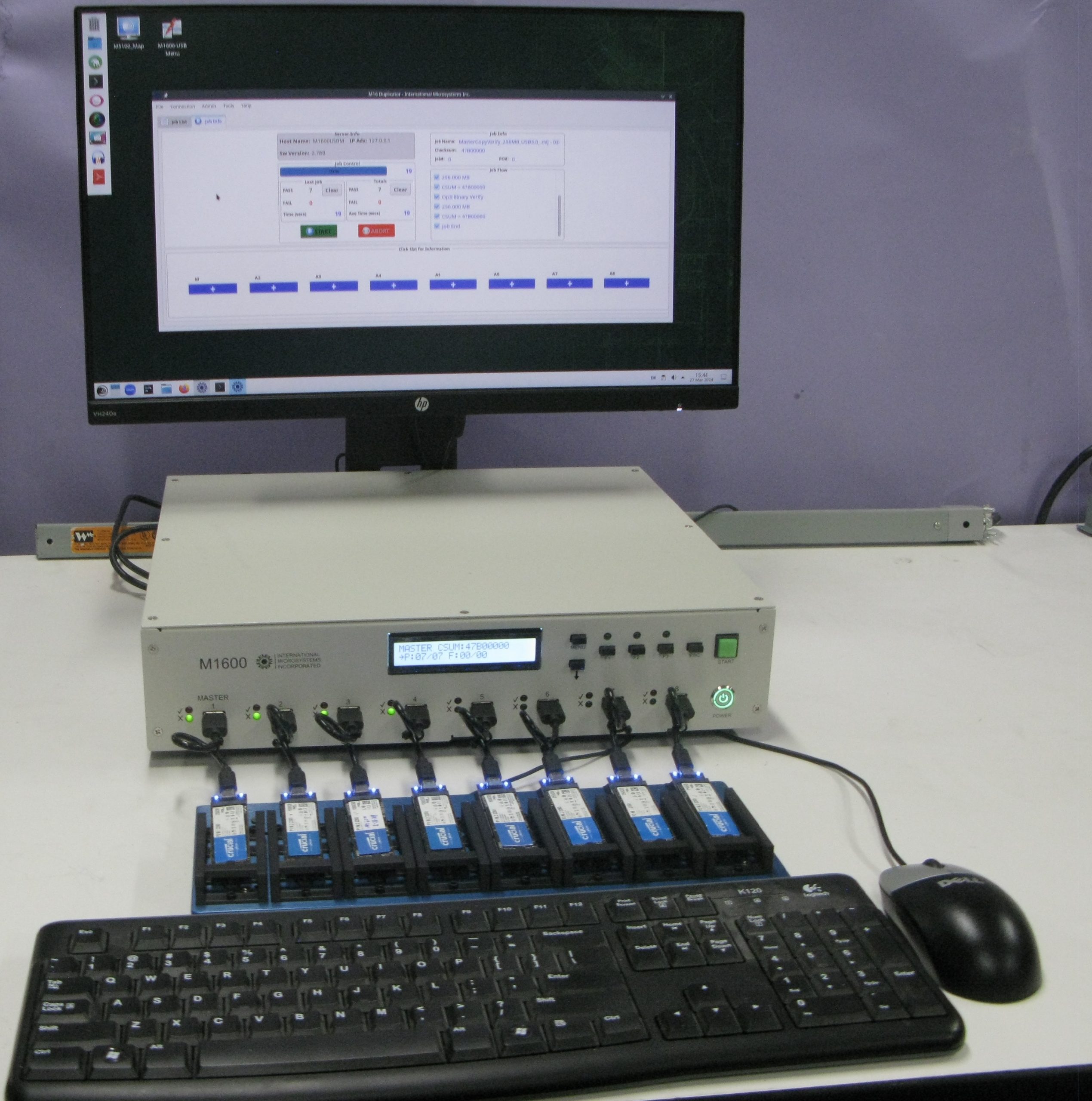

The M1600 is an 8 socket duplicator that supports standard USB devices & USB M.2 card adapters
Designed and Manufactured in the USA
Super Speed Duplication
- Super Speed USB block data transfers provide up to 10 Gigabyte per Minute
- Supports 5 GBit/sec USB 3.1 Gen 1 Super Speed & USB 2.0 High Speed USB Devices

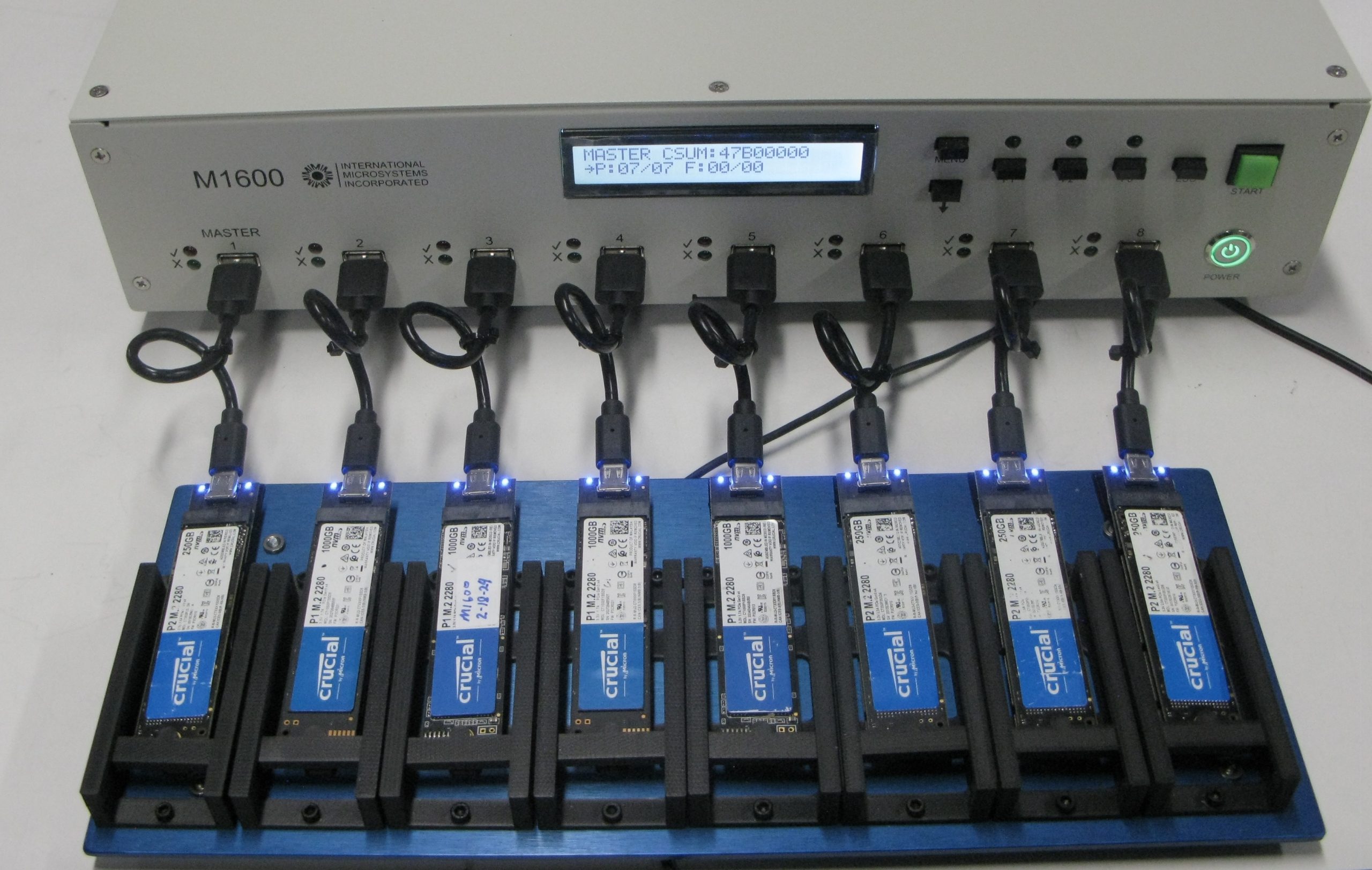

- Optional Programming of B & M type NVME M.2 & SATA(NGFF) SSD’s
Easy

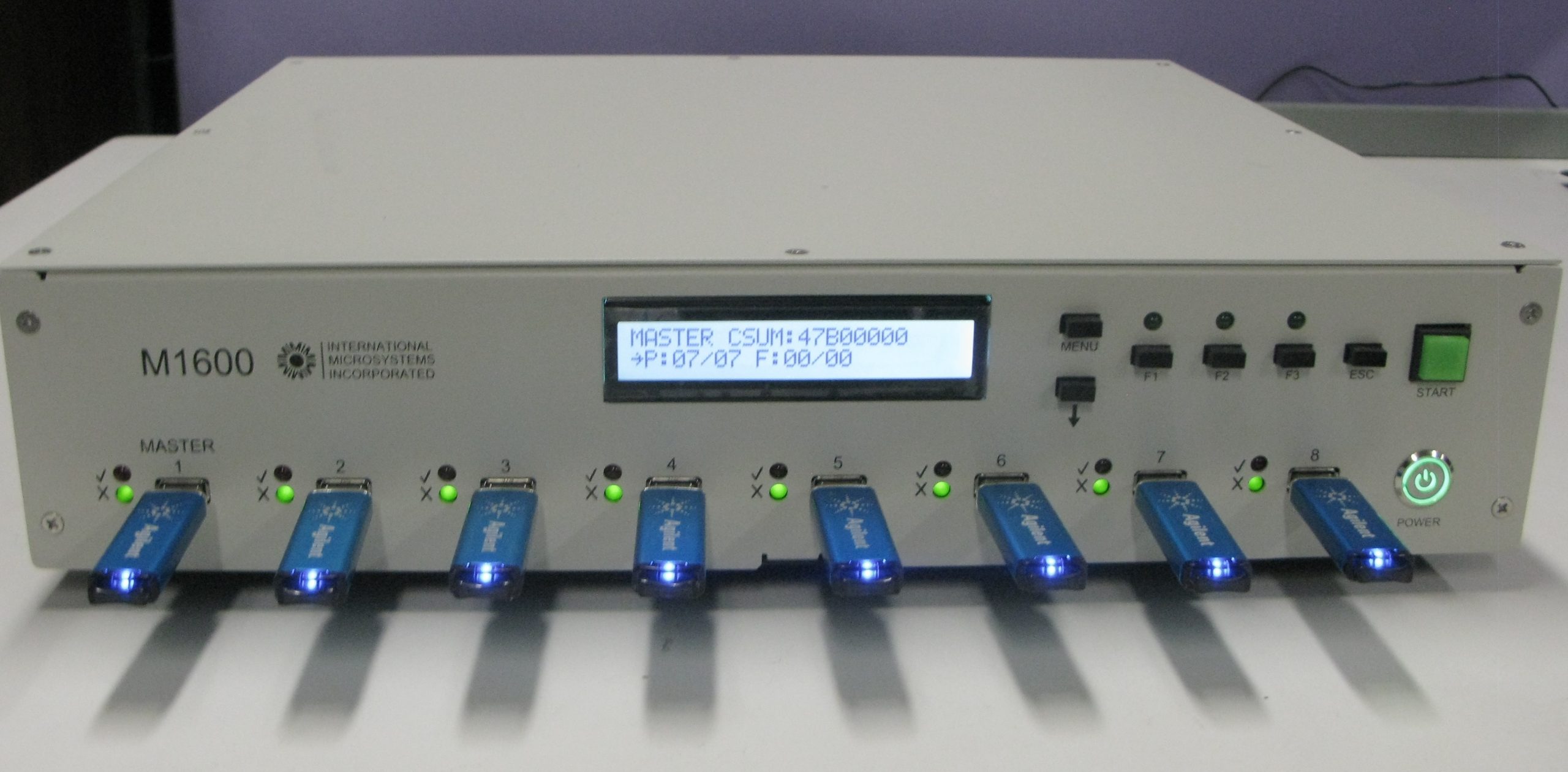

- Stand Alone Operation Front Panel Display & Keyboard

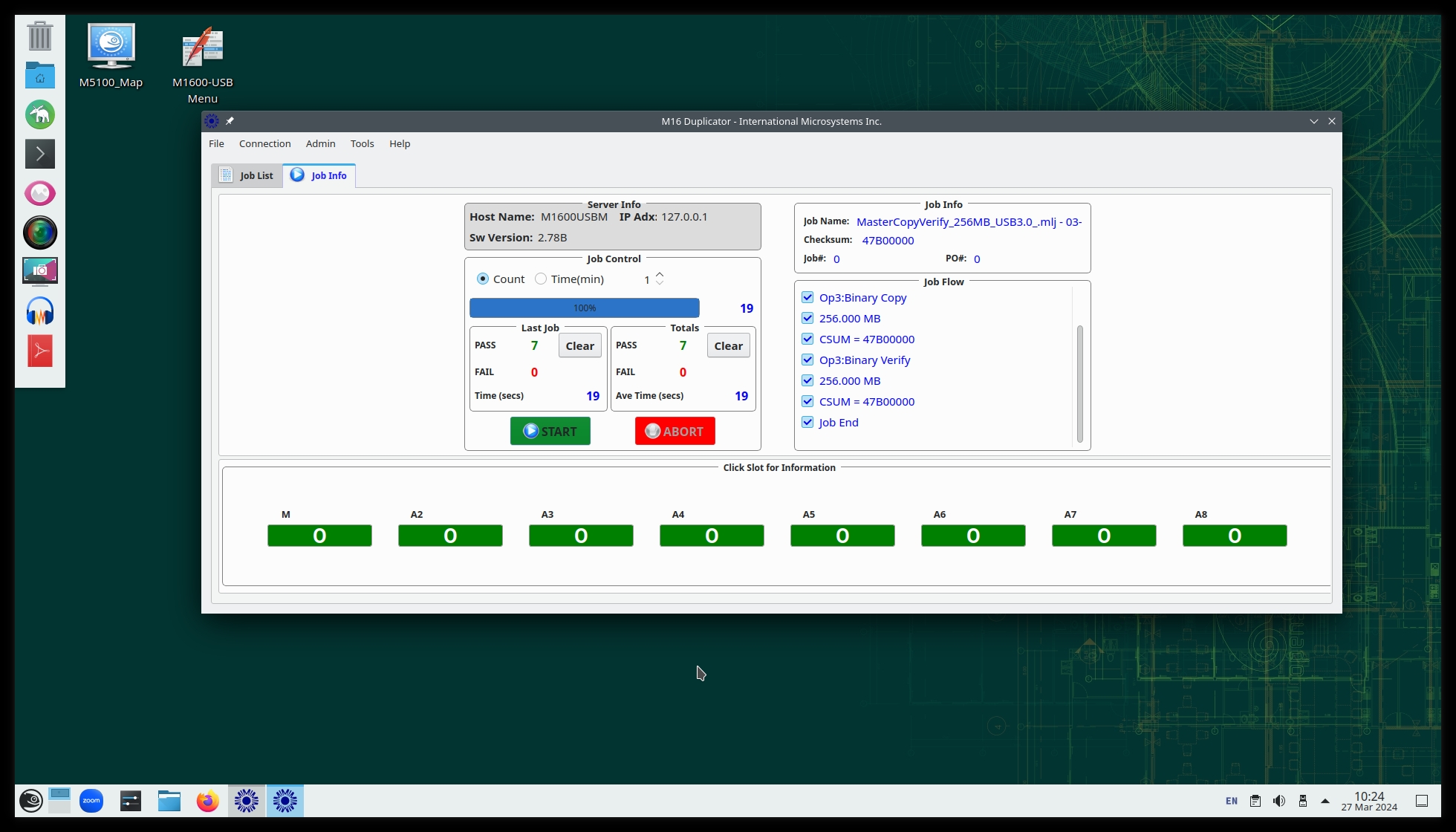

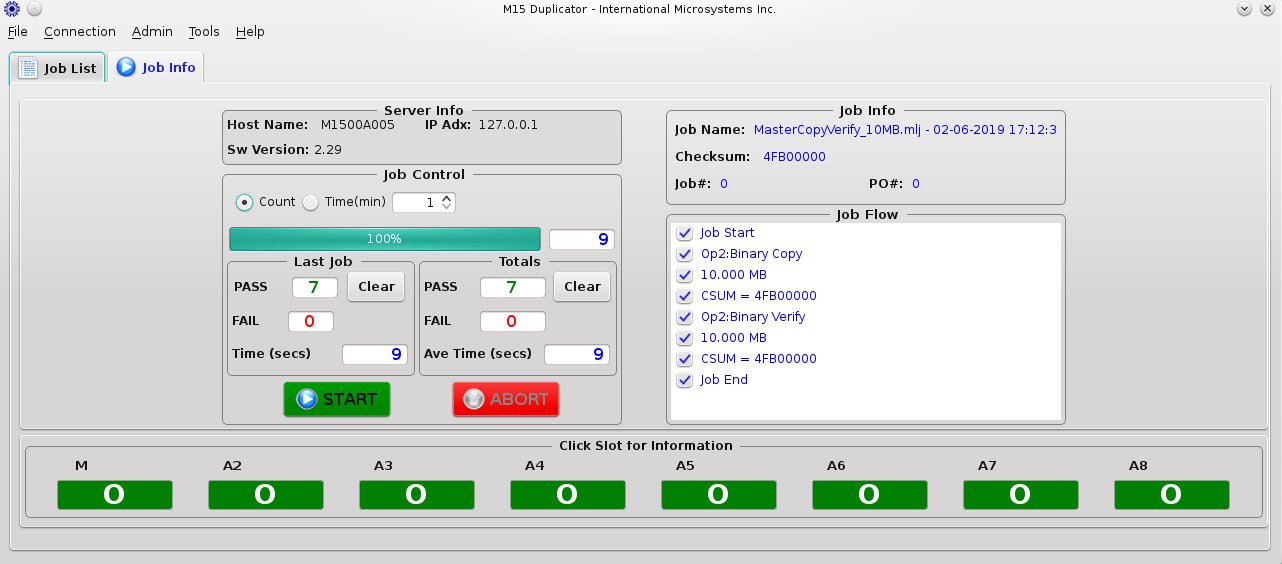

- Full Featured Graphical Interface User Provided LCD/Key/Mouse
- Support for USB Read Only/CDROM partitions
Reliable
- Exact Copy Duplication with Binary Image Sector by Sector
- Smart Copy/Verify for FAT, FAT32, exFAT, NTFS, EXT 2,3,4
- Bit by Bit Copy & Verification with Automatic Checksum Display

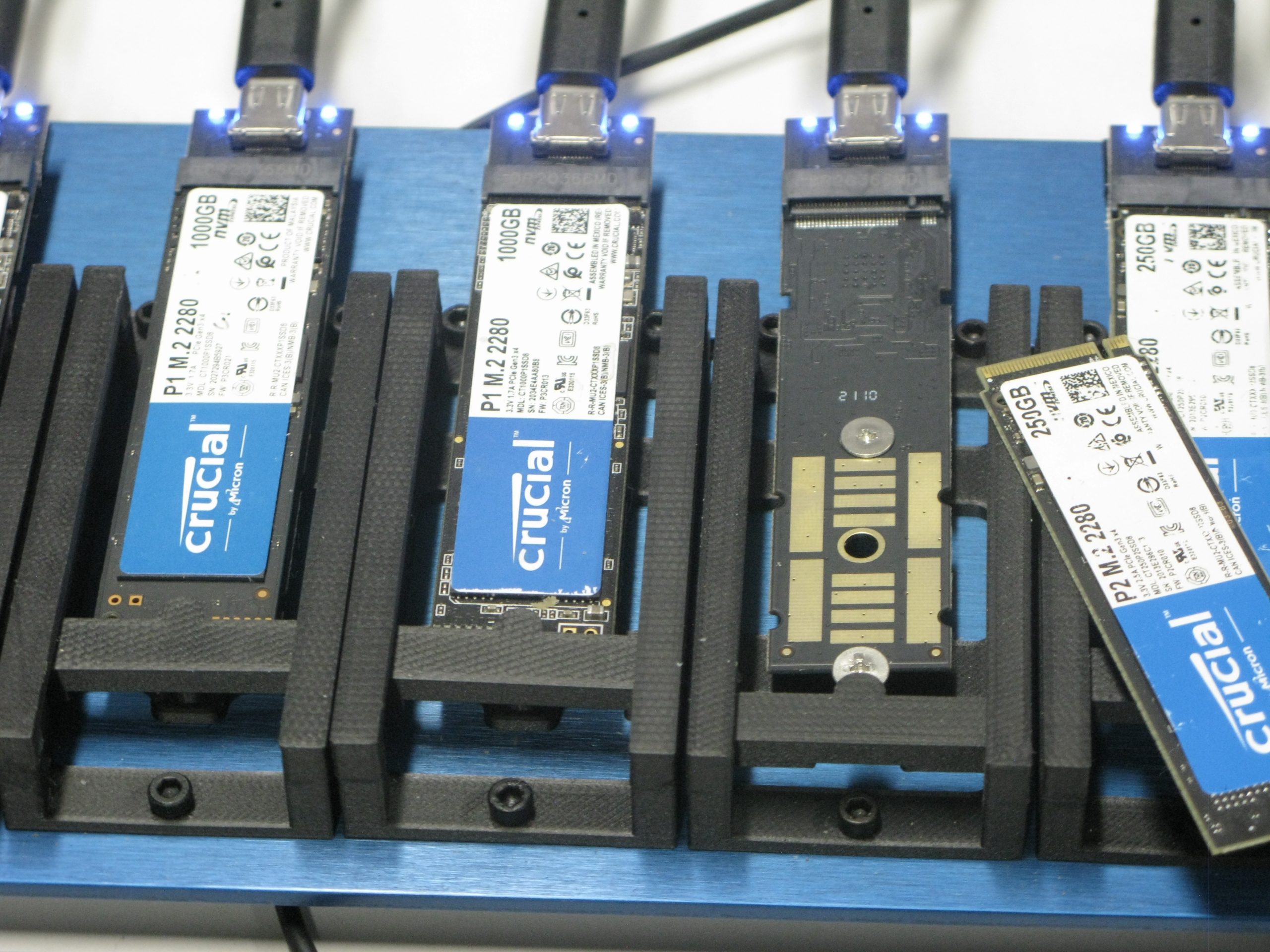

- Ease of Insertion/Removal of M.2 Modules with IMI Patent Pending Slide Bar
- Robot Compatible and multi-case Stackable Standard 19” Rack Mountable
Product Description
- USB 3.2 & 4 devices such as the USB 3.2 M.2 adapters which may require high +5V power. The M1600 USB sockets support 4 amps of ICC socket current
- M1600 includes USB device speed testing with 350MB/sec read/write testing. This will be increased to over 1000MB/sec testing on a M1600B version.

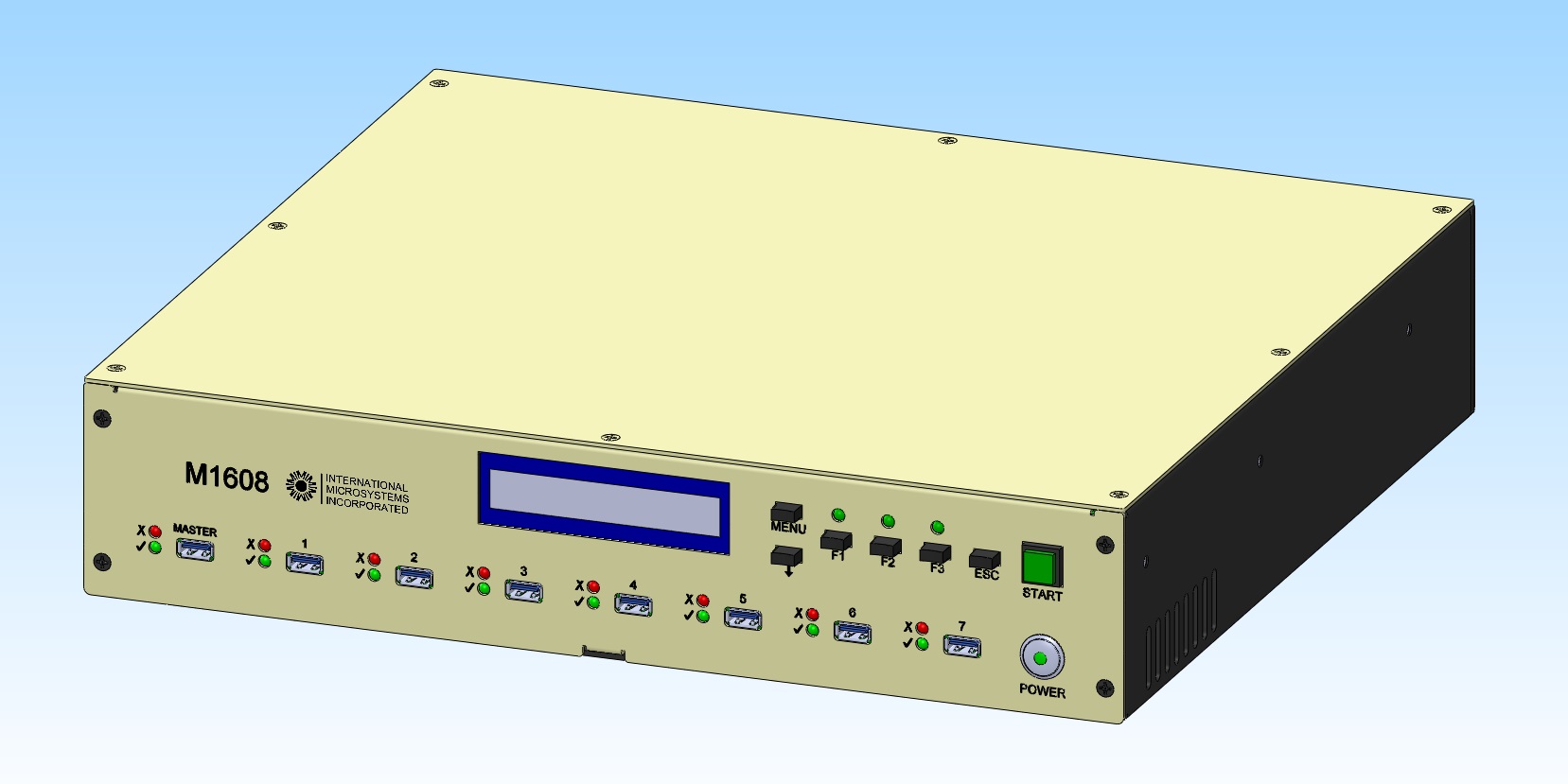

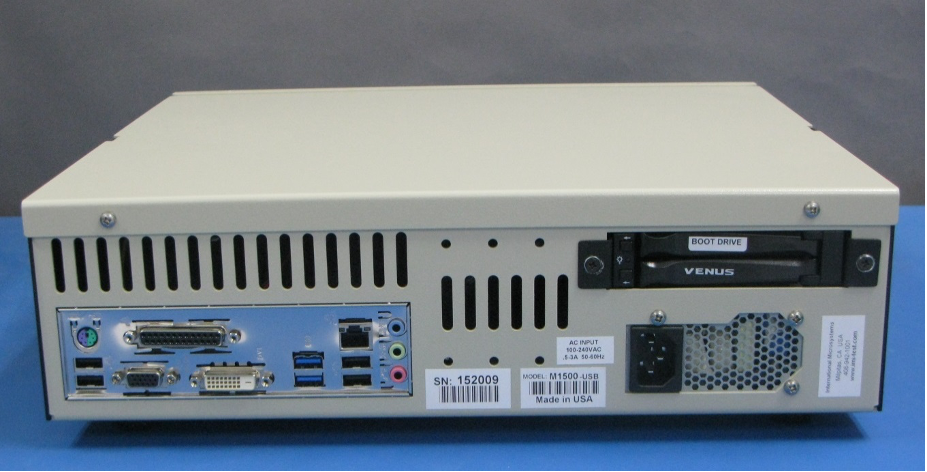

- M1600 case mounts in a standard 19” server rack with H=2U(3.5”), W=16.4″

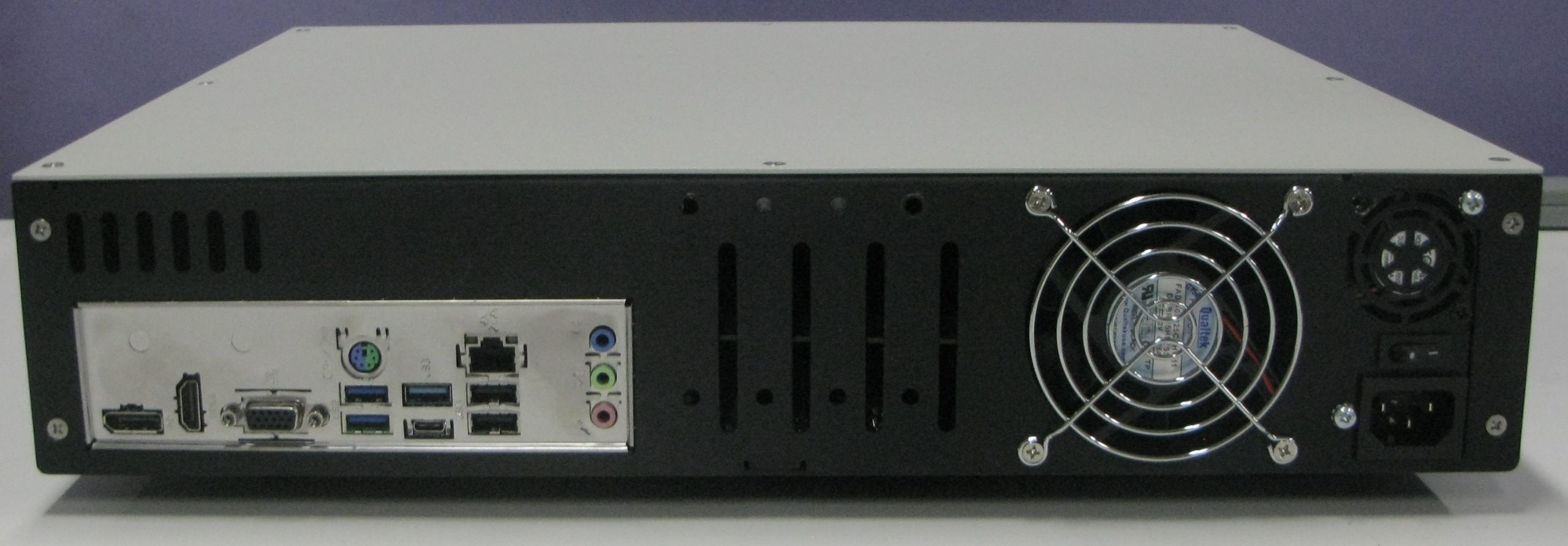

- Multiple M1600 devices can be connected together using Ethernet ports and run from a single LCD, keyboard, and mouse
- M1600 boot software uses Open Suse Leap Linux & support standad Linux programs such as Zoom, Firefox, etc.
- Multiple M1600 devices can be connected together using Ethernet ports and run from a single LCD, keyboard, and mouse

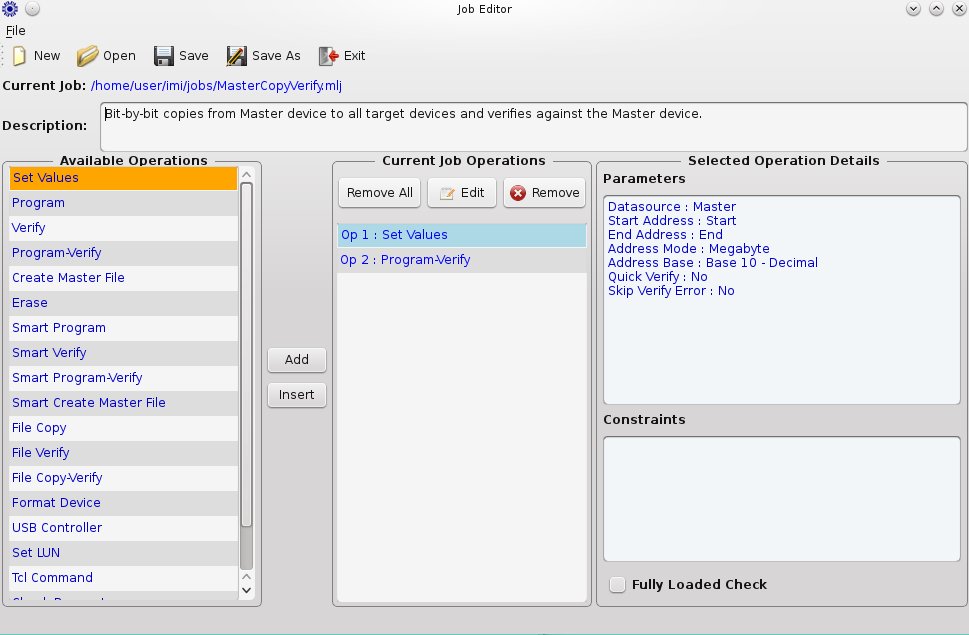

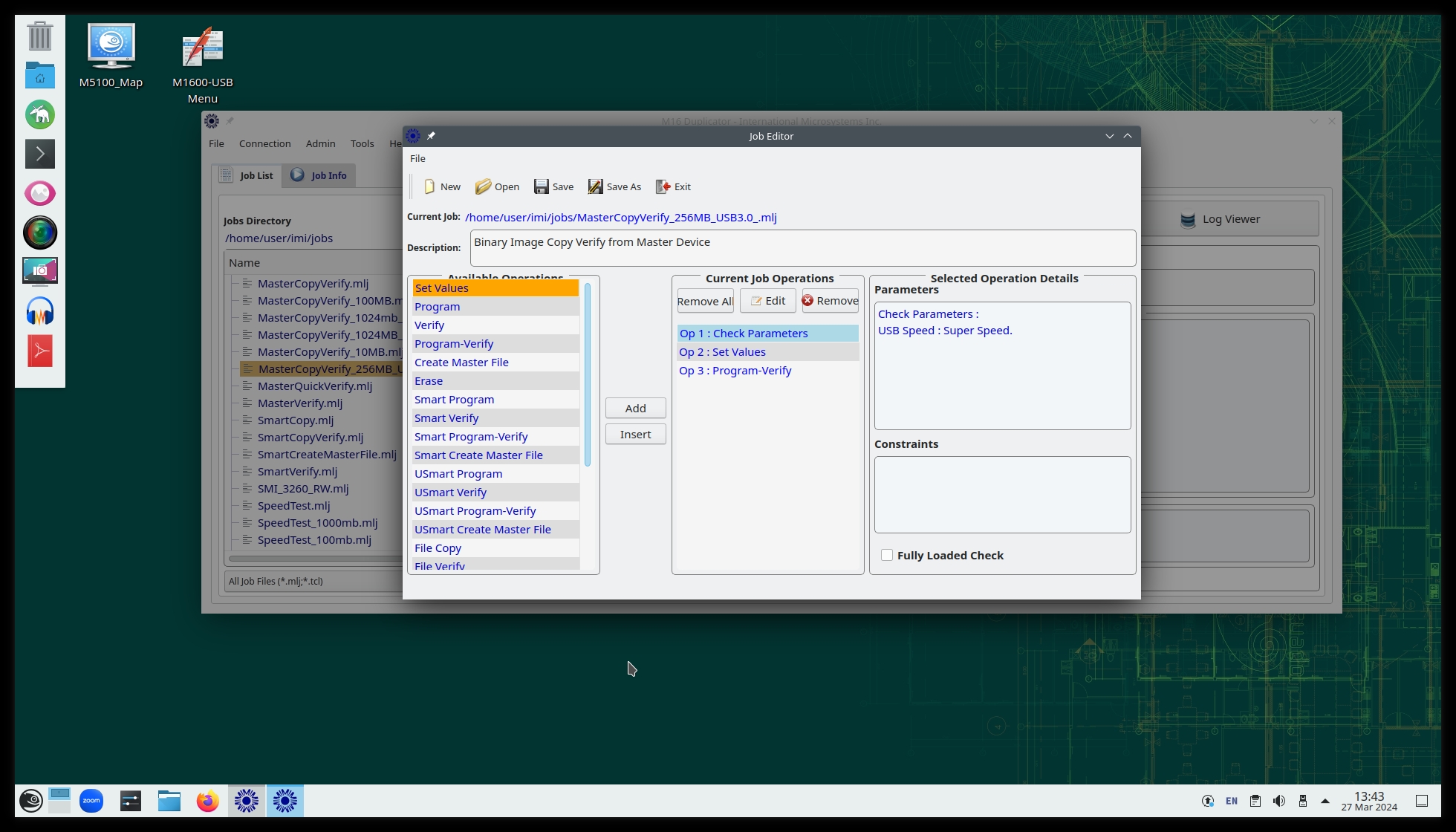

- M1600 uses IMI’s standard job scripting which is time tested and highly versatile
